Advanced analytical solutions from raw materials to final cell validation.
Image-Science provides a comprehensive portfolio of analytical instrumentation, characterization systems, and testing solutions supporting battery research, development, manufacturing, and quality assurance.
THE BATTERY WORKFLOW – END-TO-END SOLUTIONS
Supporting every stage of battery innovation with advanced characterization, imaging, spectroscopy, and testing technologies.
1. RAW MATERIALS & RECYCLING
-SEM
-Thermogravimetry
-LIBS – Li detection
-Raman spectroscopy
-Elemental Analysis
PROCESSING
-SEM-EDS
-FIB-SEM
*Electrode
*Separator
*Coating
-Micro-CT
-Elemental Analysis
-GC-MS
PRODUCTION
-SEM-EDS
-FIB-SEM
*Electrode
*Separator
*Coating
-Micro-CT
-Elemental Analysis
-GC-MS
4. CELL ASSEMBLY
-Micro-CT
*Electrode Packing Analysis
*Pore Size Distribution
*Delamination & Overhang Detection
-Test chamber
5. MODULE PRODUCTION
-Micro CT
-Battery Test Chambers
-Cleanliness Analysis
6. RESEARCH & QUALITY CONTROL
-LIBS – Element Detection
-SEM / FIB-SEM
-Raman Spectroscopy
-Micro-CT
-AFM
-Correlative Microscopy
1. RAW MATERIALS & RECYCLING
Build Battery Performance from the Right Foundation
The quality of battery materials directly influences performance, safety, and lifetime. Our solutions enable detailed characterization of virgin and recycled materials, helping manufacturers optimize material selection, validate suppliers, and improve sustainability efforts.

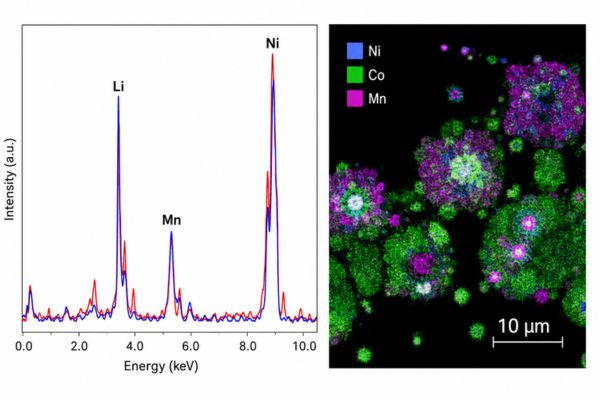

By combining elemental analysis, spectroscopy, thermal characterization, and advanced microscopy, we provide comprehensive insight into material composition, structure, and quality.
Key Solutions

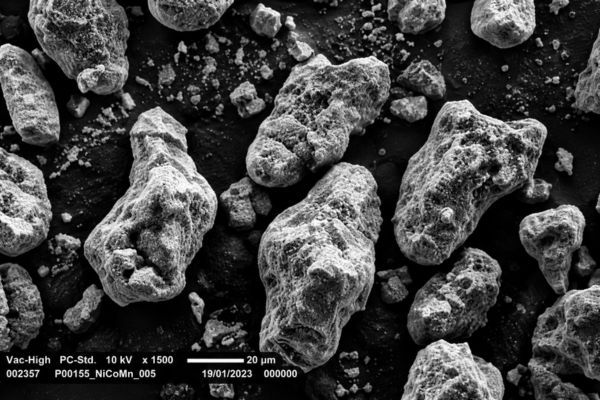

- SEM Imaging & Particle Characterization
- LIBS for Lithium Detection
- Raman Spectroscopy
- Thermogravimetric Analysis (TGA)
- Elemental Analysis (C, S, N, O and more)
2. MATERIALS
PROCESSING
Optimize Electrode and Active Material Performance
Understanding the microstructure and composition of processed materials is essential for achieving high-performance batteries.

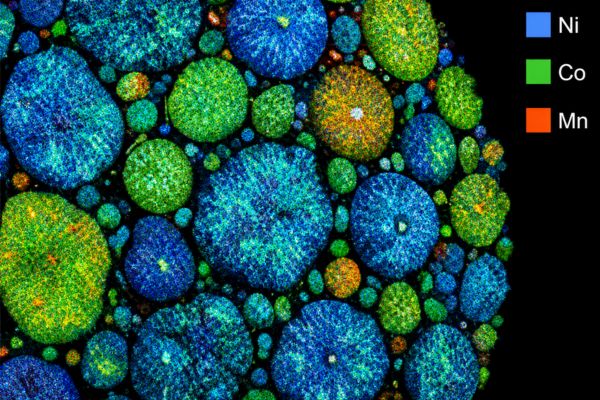

Our analytical solutions reveal particle morphology, elemental distribution, porosity, coating quality, and material homogeneity, helping manufacturers improve process control and product consistency.
Key Solutions
- SEM-EDS Analysis
- FIB-SEM for Porosity and Defect Analysis
- Raman Spectroscopy
- Elemental Analysis (C, Cu, S, N, O and more)
- Micro-CT Non-Destructive Inspection
3. COMPONENT
PRODUCTION
Ensure Quality in Every Battery Component

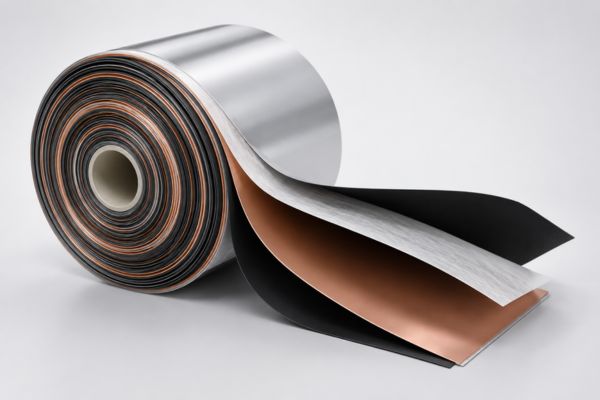

Battery performance depends on the quality and consistency of individual components. Our solutions support the inspection and characterization of electrodes, separators, current collectors, coatings, and other critical battery elements. High-resolution imaging and analytical techniques help identify structural defects, thickness variations, coating inconsistencies, and manufacturing deviations before assembly begins.
Key Solutions
- SEM-EDS
- FIB-SEM *Electrode *Separator *Coating
- Raman Spectroscopy
- Micro-CT
- Elemental Analysis
- GC-MS
4. CELL
ASSEMBLY
Validate Cell Integrity Before Production Scaling

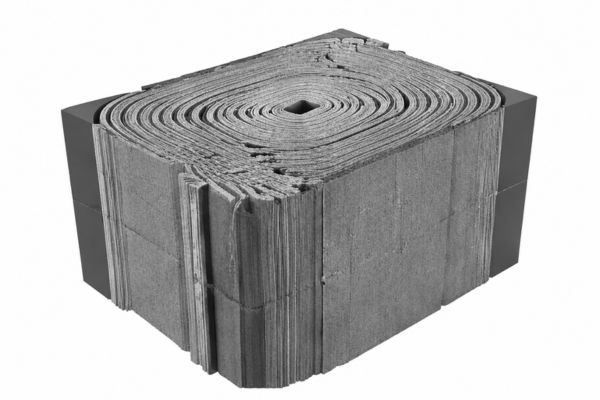

Cell assembly introduces critical factors that impact battery performance, reliability, and safety. Our imaging technologies allow manufacturers to examine internal structures without destroying valuable samples.
Detect packing irregularities, porosity variations, delamination, and alignment issues early in the development process.
Key Solutions
Micro-CT
*Electrode Packing Analysis
*Pore Size Distribution
*Delamination & Overhang DetectionBattery Test chamber
- X-Ray
5. MODULE
PRODUCTION

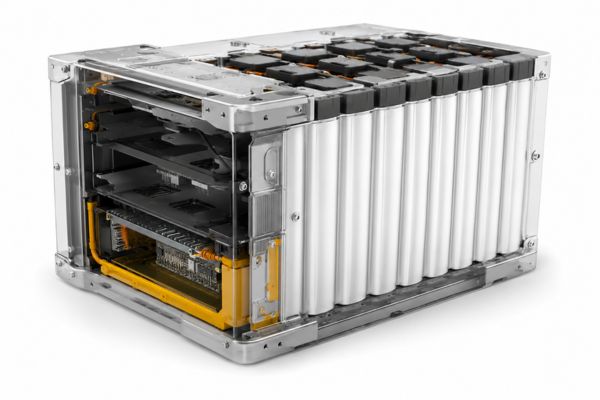

Advanced Quality Control for Battery Modules
As battery systems become more complex, non-destructive inspection becomes increasingly important. Our advanced imaging and testing solutions provide detailed insight into complete cells and modules while maintaining sample integrity.
Identify defects before they impact performance, safety, or warranty costs.
Key Solutions
Micro-CT
*Electrode Packing Analysis
*Pore Size Distribution
*Delamination & Overhang DetectionBattery Test chamber
- X-Ray
6. RESEARCH & QUALITY CONTROL
Accelerate Innovation Through Advanced Characterization
Research and quality assurance require a combination of complementary analytical techniques. Our integrated portfolio enables researchers and quality engineers to correlate structural, chemical, elemental, and functional information from a single workflow.
Gain faster answers, reduce development cycles, and ensure consistent product quality.
Key Solutions
- Micro-CT
- Battery Test chamber
- X-Ray
- SEM EDS / FIB-SEM
- Raman Spectroscopy
- Elemental Analysis
- GC-MS
- AFM
WHY IMAGE-SCIENCE
Your Partner Across the Entire Battery Lifecycle
Complete Workflow Coverage
From raw materials to finished battery modules, we support every stage of development and manufacturing.
Correlative Analytics
Combine multiple analytical techniques for deeper insight and more confident decisions.
Non-Destructive Excellence
Advanced CT and imaging solutions allow internal inspection without damaging valuable samples.
Application Expertise
Our specialists help select the right technology and optimize analytical workflows for your specific application.
Ready to Accelerate Your Battery Innovation?
Whether you are developing next-generation battery materials, optimizing manufacturing processes, or improving quality assurance, our experts can help you find the right analytical solution.
