Micro-CT

by Varjú Patrícia

TESCAN CoreTOM – A new alternative in 3D X-ray imaging

Key user benefits:

Multi-scale imaging

CoreTOM can handle a wide range of core material, from full size cores to microplugs with resolutions down to 3 μm.

Fast scanning & high sample throughput

High power X-ray source combined with various signal-to-noise optimi­zation options decreases scan time without sacrificing image quality.

Intuitive volume of interest selection

Details of the pore network or minerals can be obtained by real-time zooming in on selected regions based on the overview image.

Dynamic in situ imaging

Integration of in situ stages, provisions for flow and sensor lines and dedicated 4D acquisition and reconstruction protocols enable fast dynamic imaging.

TESCAN DynaTOM – High temporal resolution 4D X-ray imaging

Key user benefits:

Unique design for 4D dynamic imaging

DynaTOM is the first dedicated micro-CT system for fast dynamic in situ imaging.

Unlike conventional micro-CT systems, the X-ray source and detector rotate around a fixed sample.

Fast continuous acquisition

The X-ray source and detector can continuously rotate at temporal resolutions below 10 seconds every 360° rotation. This results in a continuous uninterrupted acquisition to monitor dynamic processes at spatial resolutions down to 2 μm.

Dedicated system for in situ imaging

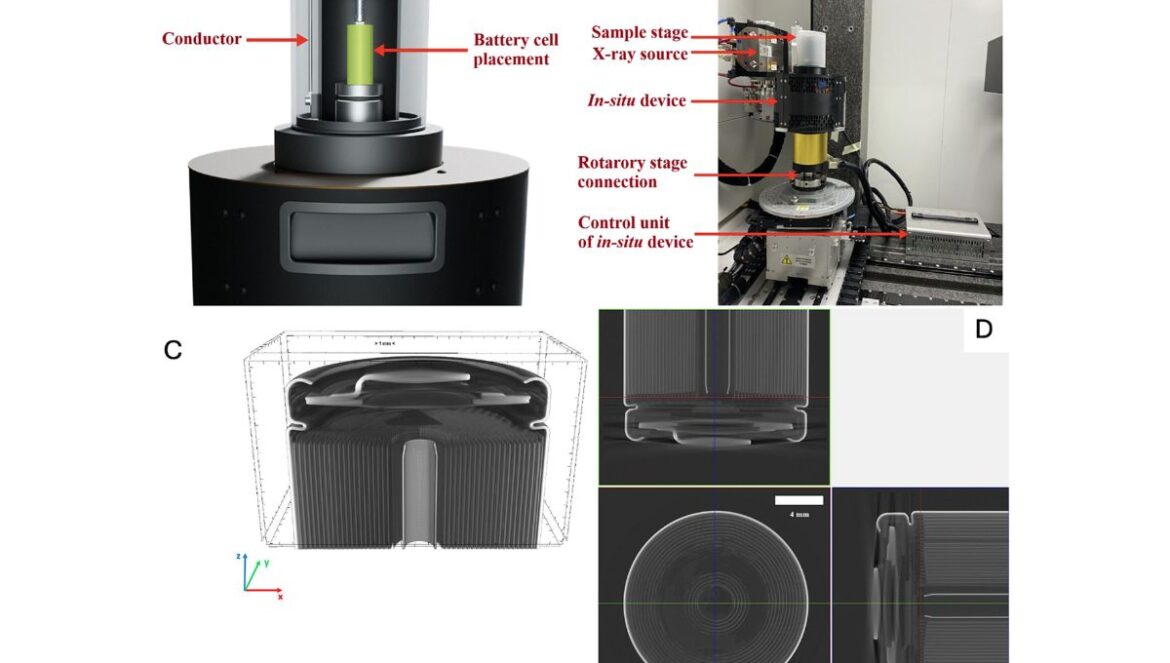

The fixed sample configuration is ideal for the integration of peripheral in situ testing equipment like flow cells and compression stages, which are connected to high pressure tubing or sensor wiring.

This avoids cable tangling and other influences on the dynamic pro­cess due to the sample rotation.

4D software tools

TESCAN UniTOM-  Modular and flexible sub-micron 3D X-ray imaging

Key user benefits:

Tailored to your applications

UniTOM is a flexible high resolution X-ray CT system which can be tuned for specific applications to maximize image quality, resolution and throughput.

Sub-micron resolution

UniTOM can reach true spatial resolutions down to 500 nm and can handle a wide range of sample types and sizes up to 40 cm in diameter and 50 cm in height.

Intuitive volume of interest selection

Details of the pore network or minerals can be obtained by real-time zooming in on selected regions based on the overview image.

Modular setup concept

UniTOM has a modular setup in which hardware components (e.g. ad­ditional X-ray sources or detectors) can easily be integrated in the sys­tem, which allows for future hardware upgrades or easy replacement of single components, prolonging the lifetime of the X-ray system.
